Stupid Simple Network Inventory

Self-hosted network inventory and logical topology visualisation

Français · Español

---

---

✨ Features

• 🗂️ Manual inventory — add and manage devices (21 types) with IPs, VLANs, descriptions and optional web links

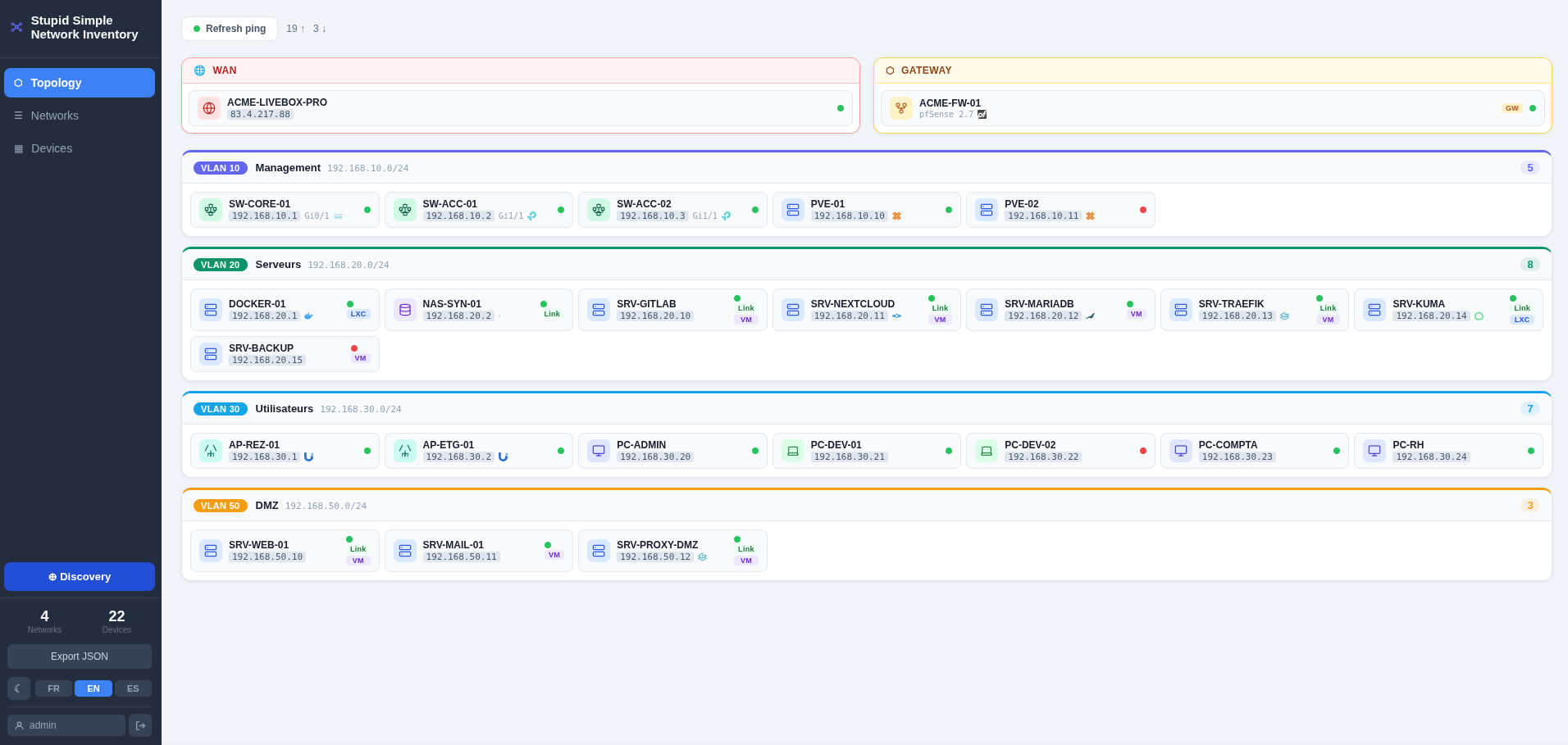

• 🗺️ Topology view — card-based layout per network (LAN / VLAN 802.1Q), with WAN and gateway sections
• 📡 ICMP ping sweep — check reachability of all known hosts in one click
• 🔍 Auto-discovery — ping sweep + PTR DNS lookup on a subnet to import new hosts
• 🏷️ Brand logos — automatic detection and display of vendor logos (Proxmox, Cisco, Synology, Docker, 30+ more)
• 🔐 Authentication — JWT-based login with forced password change on first use
• 🌙 Dark mode — light / dark theme toggle
• 🌍 i18n — French, English, Spanish

🛠️ Stack

Layer	Technology
Backend	FastAPI + SQLAlchemy + SQLite (Python 3.11)
Frontend	Vue 3 + Vite, served by Nginx
Auth	JWT HS256, 24-hour expiry
Runtime	Docker Compose

---

🚀 Quick start

# 1. Clone and enter the project
git clone https://git.raspot.in/olivier/stupid-simple-network-inventory.git
cd stupid-simple-network-inventory

# 2. Create the data directory owned by the current user
mkdir -p db_data

# 3. Configure environment (required for correct bind-mount ownership)
cp .env.example .env
# Edit .env:
#   DOCKER_UID / DOCKER_GID → output of: id -u && id -g
#   INITIAL_ADMIN_PASSWORD  → set to avoid the default admin/admin bootstrap

# 4. Build and start
docker compose --env-file .env up --build -d

# 5. Open http://localhost:8080 in your browser

First login

Case	Credentials	Behaviour
INITIAL_ADMIN_PASSWORD set	admin / <your password>	Normal login
INITIAL_ADMIN_PASSWORD unset	admin / admin	Forced password change before accessing the app

---

🔄 Updating

Data is stored in ./db_data/ (bind-mount), which is never touched by container rebuilds. Updating is safe:

git pull
docker compose up --build -d

Database migrations run automatically on startup — no manual steps required.

---

⚙️ Configuration

All configuration is via environment variables. See .env.example for the full list with descriptions.

Variable	Default	Description
SECRET_KEY	auto-generated	JWT signing key. Set explicitly in production.
INITIAL_ADMIN_PASSWORD	(empty)	Bootstrap admin password. If unset, admin/admin is used with forced change.
ALLOWED_ORIGINS	*	CORS allowed origins (comma-separated). Set to your domain in production.
BIND_ADDRESS	0.0.0.0	IP address to listen on. Set to the interface facing the reverse proxy.
DOCKER_UID / DOCKER_GID	1000	UID/GID for the backend process. Must match the host user owning ./db_data/.

cp .env.example .env
# Edit .env — at minimum set DOCKER_UID, DOCKER_GID, INITIAL_ADMIN_PASSWORD
docker compose --env-file .env up --build -d

---

🔒 Security

Secret management

Two options depending on your security requirements.

Option A — Auto-generated secret (recommended for single-node)

Leave SECRET_KEY unset (or empty) in .env. On first start the backend generates a random 64-character hex key, writes it to db_data/secret_key.txt with permissions 0600, and reuses it on every subsequent restart. The secret never appears in an environment variable, a compose file, or a log.

# .env — leave the line empty or remove it
SECRET_KEY=

The only requirement is that db_data/ is backed up (it already contains the database).

Option B — Docker Compose file secret

Stores the secret in a file on the host, outside version control, and mounts it into the container. The value never appears in an environment variable.

# Generate and store the secret outside the project directory
mkdir -p ~/.secrets
python3 -c "import secrets; print(secrets.token_hex(32))" > ~/.secrets/topologie_secret_key
chmod 600 ~/.secrets/topologie_secret_key

Then uncomment the secrets: blocks in docker-compose.yml (see comments in that file) and remove SECRET_KEY from .env. Docker Compose merges the override automatically:

docker compose up -d

Key rotation

To rotate the JWT secret (invalidates all active sessions):

# Option A — environment variable (recommended)
# Set a new SECRET_KEY in your deployment config and restart

# Option B — file rotation
docker compose stop backend
rm db_data/secret_key.txt
docker compose start backend
# All users will need to log in again

HTTPS

This application does not terminate TLS. For production use, place it behind a reverse proxy that handles HTTPS.

Nginx

server {
    listen 443 ssl;
    server_name inventory.example.com;

    ssl_certificate     /etc/letsencrypt/live/inventory.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/inventory.example.com/privkey.pem;

    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Traefik — Docker labels

Add these labels to the frontend service and connect it to the network shared with Traefik:

# docker-compose.override.yml
services:
  frontend:
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.inventory.rule=Host(`inventory.example.com`)"
      - "traefik.http.routers.inventory.entrypoints=websecure"
      - "traefik.http.routers.inventory.tls.certresolver=letsencrypt"
      - "traefik.http.services.inventory.loadbalancer.server.port=8080"
    networks:
      - internal
      - traefik_public  # network shared with your Traefik instance

networks:
  traefik_public:
    external: true

Traefik — Dynamic configuration (file provider)

If Traefik is not running in Docker (or you prefer the file provider), drop a file in your dynamic config directory:

# /etc/traefik/dynamic/inventory.yml
http:
  routers:
    inventory:
      rule: "Host(`inventory.example.com`)"
      entryPoints:
        - websecure
      tls:
        certResolver: letsencrypt
      service: inventory-svc

  services:
    inventory-svc:
      loadBalancer:
        servers:
          - url: "http://127.0.0.1:8080"

Traefik picks up the file automatically — no restart required.

For local-only use, bind to loopback to prevent accidental LAN exposure:

# docker-compose.override.yml
services:
  frontend:
    ports:
      - "127.0.0.1:8080:8080"

Container hardening

Measure	Backend	Frontend
Non-root user	DOCKER_UID:DOCKER_GID (host user)	nginx (UID 101)
cap_drop: ALL	✓	✓
cap_add: NET_RAW	✓ (ping)	—
no-new-privileges	— ¹	✓
Healthcheck	✓	✓

¹ Omitted on the backend: ping uses file capabilities (cap_net_raw=ep); no-new-privileges suppresses the file effective bit and would prevent the subprocess from acquiring CAP_NET_RAW in its effective set even though the parent holds it in its permitted set.

---

💾 Data persistence

All data is stored in ./db_data/:

File	Description
topology.db	SQLite database
secret_key.txt	Auto-generated JWT secret (0600 permissions)

Backup: cp -r db_data/ db_data.bak/

Restore: stop the stack, replace db_data/, restart.

---

🏷️ Brand logo detection

Logo detection runs automatically against the device name and description fields (case-insensitive keyword matching). No manual configuration needed — just include a recognisable keyword in the name or description.

Logos are displayed in two places:

• Topology view — small inline SVGs next to the device name on each chip
• Device list — coloured badge(s) in the device card

Multiple logos can appear simultaneously if several keywords match.

Category	Brand	Trigger keywords
Virtualisation	Proxmox	proxmox, pve
Virtualisation	Docker	docker
NAS	Synology	synology, dsm
NAS	TrueNAS	truenas, freenas
Network	Ubiquiti / UniFi	ubiquiti, unifi, usg, udm
Network	MikroTik	mikrotik, routeros
Network	Cisco	cisco
Network	TP-Link	tp-link, tplink
Network	ASUS	asus
Network	Netgear	netgear
Network	pfSense	pfsense
Network	OPNsense	opnsense
Network	OpenWrt	openwrt
Web / proxy	Apache	apache, apache2, httpd
Web / proxy	Traefik	traefik
Auth / SSO	Authelia	authelia
Auth / SSO	Keycloak	keycloak
Auth / SSO	Authentik	authentik
Auth / SSO	Okta	okta
Auth / SSO	Auth0	auth0
Password vault	Vaultwarden	vaultwarden
Password vault	Bitwarden	bitwarden
Password vault	1Password	1password, onepassword
Password vault	KeePassXC	keepass, keepassxc
Password vault	HashiCorp Vault	hashicorp vault, hashicorp
Database	MariaDB	mariadb
Orchestration	Kubernetes	kubernetes, k8s, kubectl, k3s
OS	Debian	debian
OS	Ubuntu	ubuntu
Automation	Ansible	ansible
Servers	Dell	dell, idrac, poweredge
Servers	HP	proliant, ilo, hewlett
SBC / DIY	Raspberry Pi	raspberry, rpi, raspi
SBC / DIY	Arduino	arduino
Desktop	KDE / Plasma	kde, plasma
Tools	Excalidraw	excalidraw
Self-hosted	Nextcloud	nextcloud
Self-hosted	Paperless-NGX	paperless, paperless-ngx
Self-hosted	Uptime Kuma	uptime-kuma, uptime kuma
Self-hosted	MkDocs	mkdocs
CMS / Blog	WordPress	wordpress
CMS / Blog	Ghost	ghost
CMS / Blog	Grav	grav
CMS / Blog	Jekyll	jekyll
CMS / Blog	Hugo	hugo
CMS / Blog	Hexo	hexo
CMS / Blog	Drupal	drupal
CMS / Blog	Joomla	joomla
CMS / Blog	TYPO3	typo3
CMS / Blog	OctoberCMS	octobercms, october cms
CMS / Blog	Textpattern	textpattern
Analytics	Matomo	matomo
Analytics	Plausible	plausible
Media / torrent	Radarr	radarr
Media / torrent	Sonarr	sonarr
Media / torrent	Transmission	transmission
Media / home automation	Jellyfin	jellyfin
Media / home automation	Home Assistant	homeassistant, home assistant, hassio
Media / home automation	Philips Hue	philips hue, hue bridge
Media / home automation	Xiaomi	xiaomi, mi home, yeelight

---

🧑‍💻 Development

Backend tests

cd backend
pip install -r requirements.txt -r requirements-test.txt
pytest tests/ -v

Local dev (without Docker)

# Backend
cd backend
pip install -r requirements.txt
uvicorn main:app --reload

# Frontend (separate terminal)
cd frontend
npm install
npm run dev   # Vite dev server on :5173, proxies /api/ to :8000

---

🏗️ Architecture

See docs/architecture.md for the detailed request flow, Docker setup, and authentication model.

---

🤖 Built with AI assistance

This application was developed entirely with the help of AI coding assistants:

• Claude Code (Anthropic) — used throughout the project for architecture design, backend API (FastAPI, SQLAlchemy, authentication, ICMP discovery), frontend components (Vue 3, CSS topology layout, i18n, dark mode), Docker & Nginx configuration, and documentation.
• Codex (OpenAI) — also used during development for code generation and suggestions across the entire codebase.

---

📄 License

This project is licensed under the GNU General Public License v3.0.

You are free to use, modify and distribute this software under the terms of the GPL v3. Any derivative work must be distributed under the same license.
