Stupid Simple Network Inventory

Self-hosted network inventory and logical topology visualisation

Français · Español

---

---

✨ Features

• 🗂️ Manual inventory — add and manage devices (18 types) with IPs, VLANs, descriptions and optional web links

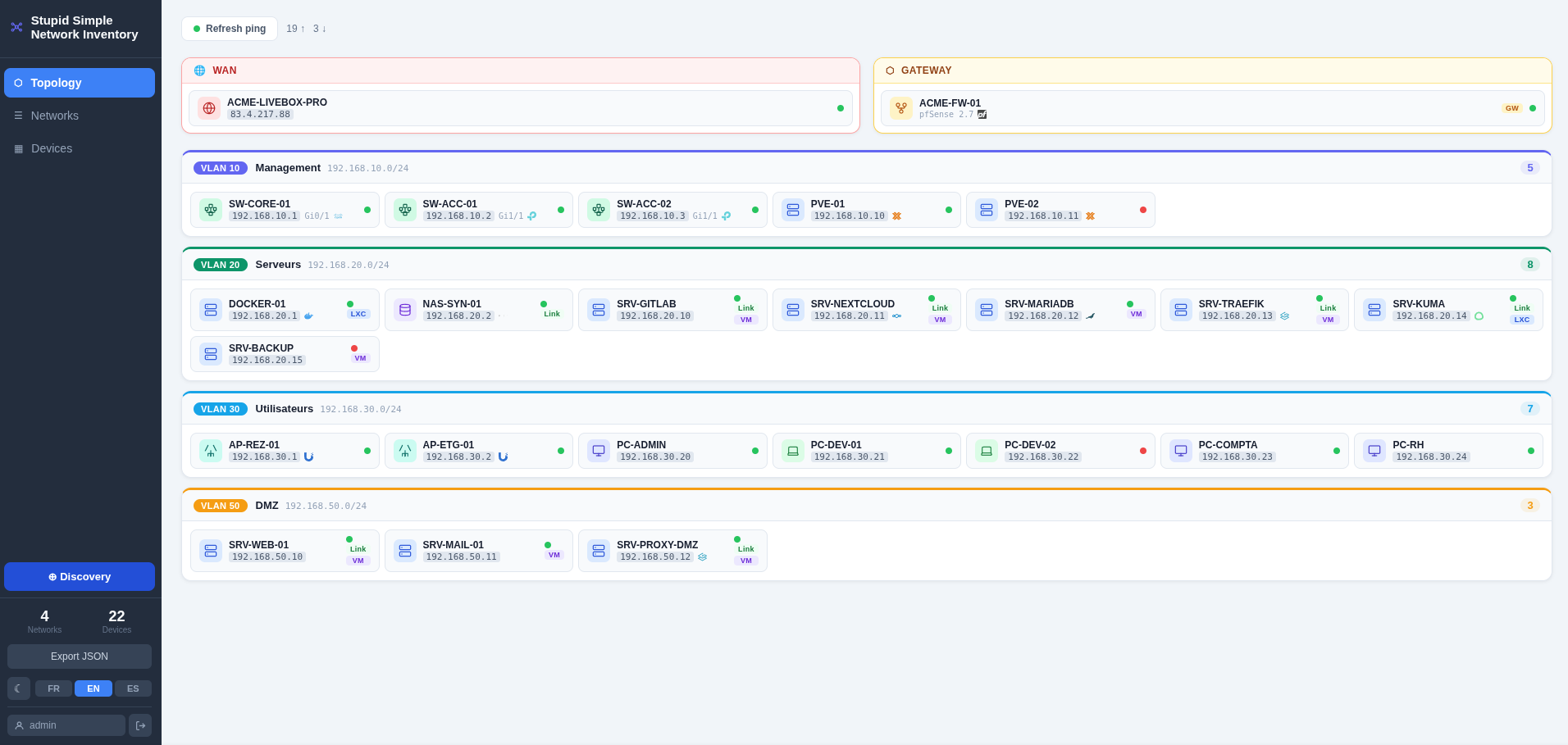

• 🗺️ Topology view — card-based layout per network (LAN / VLAN 802.1Q), with WAN and gateway sections
• 📡 ICMP ping sweep — check reachability of all known hosts in one click
• 🔍 Auto-discovery — ping sweep + PTR DNS lookup on a subnet to import new hosts
• 🏷️ Brand logos — automatic detection and display of vendor logos (Proxmox, Cisco, Synology, Docker, 30+ more)
• 🔐 Authentication — JWT-based login with forced password change on first use
• 🌙 Dark mode — light / dark theme toggle
• 🌍 i18n — French, English, Spanish

🛠️ Stack

Layer	Technology
Backend	FastAPI + SQLAlchemy + SQLite (Python 3.11)
Frontend	Vue 3 + Vite, served by Nginx
Auth	JWT HS256, 24-hour expiry
Runtime	Docker Compose

---

🚀 Quick start

# 1. Clone and enter the project
git clone https://git.raspot.in/olivier/stupid-simple-network-inventory.git
cd stupid-simple-network-inventory

# 2. Create the data directory owned by the current user
mkdir -p db_data

# 3. Configure environment (required for correct bind-mount ownership)
cp .env.example .env
# Edit .env:
#   DOCKER_UID / DOCKER_GID → output of: id -u && id -g
#   INITIAL_ADMIN_PASSWORD  → set to avoid the default admin/admin bootstrap

# 4. Build and start
docker compose --env-file .env up --build -d

# 5. Open http://localhost:8080 in your browser

First login

Case	Credentials	Behaviour
INITIAL_ADMIN_PASSWORD set	admin / <your password>	Normal login
INITIAL_ADMIN_PASSWORD unset	admin / admin	Forced password change before accessing the app

---

⚙️ Configuration

All configuration is via environment variables. See .env.example for the full list with descriptions.

Variable	Default	Description
SECRET_KEY	auto-generated	JWT signing key. Set explicitly in production.
INITIAL_ADMIN_PASSWORD	(empty)	Bootstrap admin password. If unset, admin/admin is used with forced change.
ALLOWED_ORIGINS	*	CORS allowed origins (comma-separated). Set to your domain in production.
BIND_ADDRESS	0.0.0.0	IP address to listen on. Set to the interface facing the reverse proxy.
DOCKER_UID / DOCKER_GID	1000	UID/GID for the backend process. Must match the host user owning ./db_data/.

cp .env.example .env
# Edit .env — at minimum set DOCKER_UID, DOCKER_GID, INITIAL_ADMIN_PASSWORD
docker compose --env-file .env up --build -d

---

🔒 Security

Secret management

Two options depending on your security requirements.

Option A — Auto-generated secret (recommended for single-node)

Leave SECRET_KEY unset (or empty) in .env. On first start the backend generates a random 64-character hex key, writes it to db_data/secret_key.txt with permissions 0600, and reuses it on every subsequent restart. The secret never appears in an environment variable, a compose file, or a log.

# .env — leave the line empty or remove it
SECRET_KEY=

The only requirement is that db_data/ is backed up (it already contains the database).

Option B — Docker Compose file secret

Stores the secret in a file on the host, outside version control, and mounts it into the container. The value never appears in an environment variable.

# Generate and store the secret outside the project directory
mkdir -p ~/.secrets
python3 -c "import secrets; print(secrets.token_hex(32))" > ~/.secrets/topologie_secret_key
chmod 600 ~/.secrets/topologie_secret_key

Then uncomment the secrets: blocks in docker-compose.yml (see comments in that file) and remove SECRET_KEY from .env. Docker Compose merges the override automatically:

docker compose up -d

Key rotation

To rotate the JWT secret (invalidates all active sessions):

# Option A — environment variable (recommended)
# Set a new SECRET_KEY in your deployment config and restart

# Option B — file rotation
docker compose stop backend
rm db_data/secret_key.txt
docker compose start backend
# All users will need to log in again

HTTPS

This application does not terminate TLS. For production use, place it behind a reverse proxy that handles HTTPS.

Nginx

server {
    listen 443 ssl;
    server_name inventory.example.com;

    ssl_certificate     /etc/letsencrypt/live/inventory.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/inventory.example.com/privkey.pem;

    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Traefik — Docker labels

Add these labels to the frontend service and connect it to the network shared with Traefik:

# docker-compose.override.yml
services:
  frontend:
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.inventory.rule=Host(`inventory.example.com`)"
      - "traefik.http.routers.inventory.entrypoints=websecure"
      - "traefik.http.routers.inventory.tls.certresolver=letsencrypt"
      - "traefik.http.services.inventory.loadbalancer.server.port=8080"
    networks:
      - internal
      - traefik_public  # network shared with your Traefik instance

networks:
  traefik_public:
    external: true

Traefik — Dynamic configuration (file provider)

If Traefik is not running in Docker (or you prefer the file provider), drop a file in your dynamic config directory:

# /etc/traefik/dynamic/inventory.yml
http:
  routers:
    inventory:
      rule: "Host(`inventory.example.com`)"
      entryPoints:
        - websecure
      tls:
        certResolver: letsencrypt
      service: inventory-svc

  services:
    inventory-svc:
      loadBalancer:
        servers:
          - url: "http://127.0.0.1:8080"

Traefik picks up the file automatically — no restart required.

For local-only use, bind to loopback to prevent accidental LAN exposure:

# docker-compose.override.yml
services:
  frontend:
    ports:
      - "127.0.0.1:8080:8080"

Container hardening

Measure	Backend	Frontend
Non-root user	DOCKER_UID:DOCKER_GID (host user)	nginx (UID 101)
cap_drop: ALL	✓	✓
cap_add: NET_RAW	✓ (ping)	—
no-new-privileges	— ¹	✓
Healthcheck	✓	✓

¹ Omitted on the backend: ping uses file capabilities (cap_net_raw=ep); no-new-privileges suppresses the file effective bit and would prevent the subprocess from acquiring CAP_NET_RAW in its effective set even though the parent holds it in its permitted set.

---

💾 Data persistence

All data is stored in ./db_data/:

File	Description
topology.db	SQLite database
secret_key.txt	Auto-generated JWT secret (0600 permissions)

Backup: cp -r db_data/ db_data.bak/

Restore: stop the stack, replace db_data/, restart.

---

🧑‍💻 Development

Backend tests

cd backend
pip install -r requirements.txt -r requirements-test.txt
pytest tests/ -v

Local dev (without Docker)

# Backend
cd backend
pip install -r requirements.txt
uvicorn main:app --reload

# Frontend (separate terminal)
cd frontend
npm install
npm run dev   # Vite dev server on :5173, proxies /api/ to :8000

---

🏗️ Architecture

See docs/architecture.md for the detailed request flow, Docker setup, and authentication model.
