Stupid Simple Network Inventory

Self-hosted network inventory and logical topology visualisation

Français · Español

---

---

✨ Features

• 🗂️ Manual inventory — add and manage devices (21 types) with IPs, VLANs, descriptions and optional web links

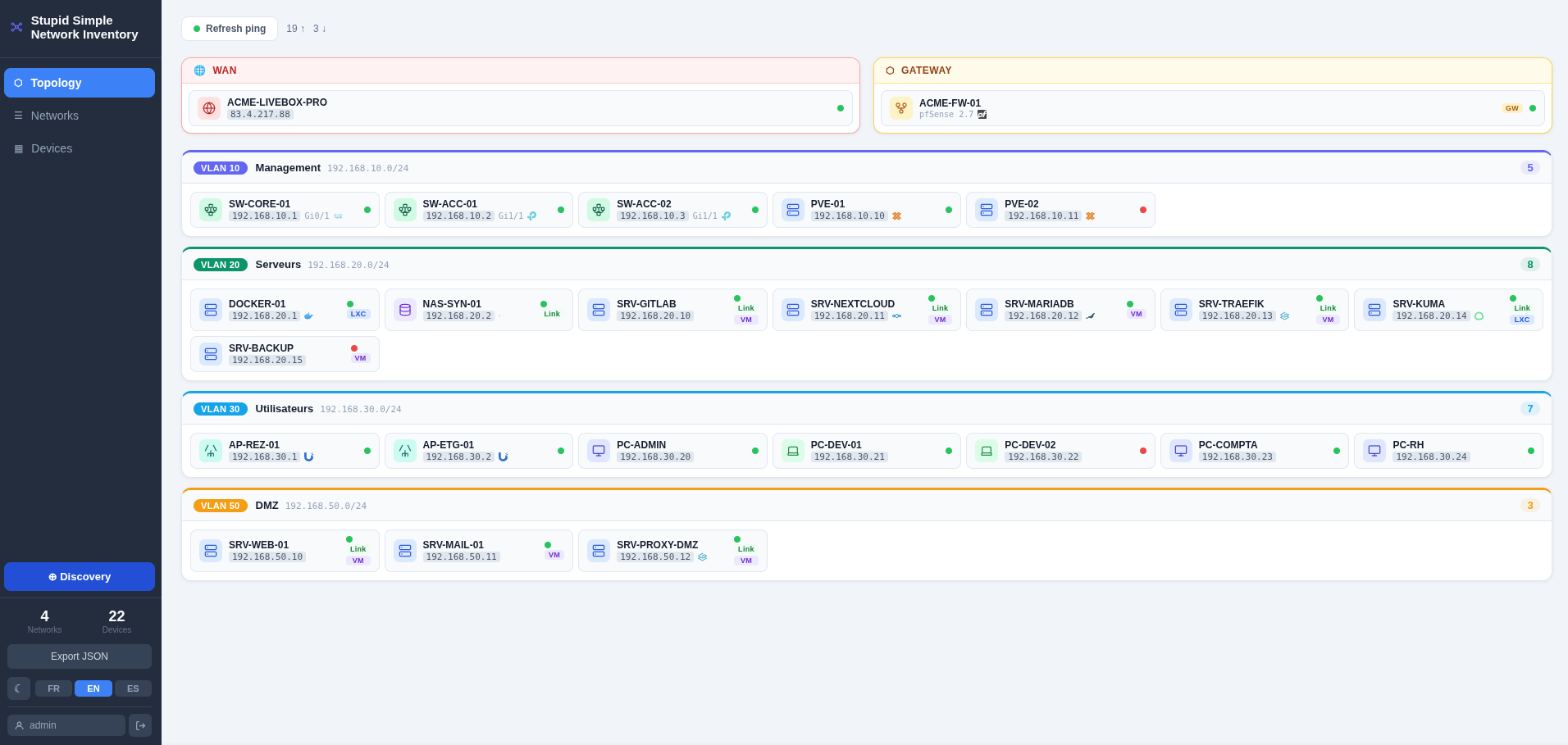

• 🗺️ Topology view — card-based layout per network (LAN / VLAN 802.1Q), with WAN and gateway sections
• 📡 ICMP ping sweep — check reachability of all known hosts in one click
• 🔍 Auto-discovery — ping sweep + PTR DNS lookup on a subnet to import new hosts
• 🏷️ Brand logos — automatic detection and display of vendor logos (Proxmox, Cisco, Synology, Docker, 30+ more)
• 🔐 Authentication — JWT-based login with forced password change on first use
• 🌙 Dark mode — light / dark theme toggle
• 🌍 i18n — French, English, Spanish

🛠️ Stack

Layer	Technology
Backend	FastAPI + SQLAlchemy + SQLite (Python 3.11)
Frontend	Vue 3 + Vite, served by Nginx
Auth	JWT HS256, 24-hour expiry
Runtime	Docker Compose

---

🚀 Quick start

# 1. Clone and enter the project
git clone https://git.raspot.in/olivier/stupid-simple-network-inventory.git
cd stupid-simple-network-inventory

# 2. Create the data directory owned by the current user
mkdir -p db_data

# 3. Configure environment (required for correct bind-mount ownership)
cp .env.example .env
# Edit .env:
#   DOCKER_UID / DOCKER_GID → output of: id -u && id -g
#   INITIAL_ADMIN_PASSWORD  → set to avoid the default admin/admin bootstrap

# 4. Build and start
docker compose --env-file .env up --build -d

# 5. Open http://localhost:8080 in your browser

First login

Case	Credentials	Behaviour
INITIAL_ADMIN_PASSWORD set	admin / <your password>	Normal login
INITIAL_ADMIN_PASSWORD unset	admin / admin	Forced password change before accessing the app

---

🔄 Updating

Data is stored in ./db_data/ (bind-mount), which is never touched by container rebuilds. Updating is safe:

git pull
docker compose up --build -d

Database migrations run automatically on startup — no manual steps required.

---

⚙️ Configuration

All configuration is via environment variables. See .env.example for the full list with descriptions.

Variable	Default	Description
SECRET_KEY	auto-generated	JWT signing key. Set explicitly in production.
INITIAL_ADMIN_PASSWORD	(empty)	Bootstrap admin password. If unset, admin/admin is used with forced change.
ALLOWED_ORIGINS	*	CORS allowed origins (comma-separated). Set to your domain in production.
BIND_ADDRESS	0.0.0.0	IP address to listen on. Set to the interface facing the reverse proxy.
DNS_SERVER	(empty)	DNS server for PTR lookups during auto-discovery. Pre-fills the field in the UI (overridable per scan). Leave empty to disable reverse DNS.
DOCKER_UID / DOCKER_GID	1000	UID/GID for the backend process. Must match the host user owning ./db_data/.

cp .env.example .env
# Edit .env — at minimum set DOCKER_UID, DOCKER_GID, INITIAL_ADMIN_PASSWORD
docker compose --env-file .env up --build -d

---

🔒 Security

Secret management

Two options depending on your security requirements.

Option A — Auto-generated secret (recommended for single-node)

Leave SECRET_KEY unset (or empty) in .env. On first start the backend generates a random 64-character hex key, writes it to db_data/secret_key.txt with permissions 0600, and reuses it on every subsequent restart. The secret never appears in an environment variable, a compose file, or a log.

# .env — leave the line empty or remove it
SECRET_KEY=

The only requirement is that db_data/ is backed up (it already contains the database).

Option B — Docker Compose file secret

Stores the secret in a file on the host, outside version control, and mounts it into the container. The value never appears in an environment variable.

# Generate and store the secret outside the project directory
mkdir -p ~/.secrets
python3 -c "import secrets; print(secrets.token_hex(32))" > ~/.secrets/topologie_secret_key
chmod 600 ~/.secrets/topologie_secret_key

Then uncomment the secrets: blocks in docker-compose.yml (see comments in that file) and remove SECRET_KEY from .env. Docker Compose merges the override automatically:

docker compose up -d

Key rotation

To rotate the JWT secret (invalidates all active sessions):

# Option A — environment variable (recommended)
# Set a new SECRET_KEY in your deployment config and restart

# Option B — file rotation
docker compose stop backend
rm db_data/secret_key.txt
docker compose start backend
# All users will need to log in again

HTTPS

This application does not terminate TLS. For production use, place it behind a reverse proxy that handles HTTPS.

Nginx

server {
    listen 443 ssl;
    server_name inventory.example.com;

    ssl_certificate     /etc/letsencrypt/live/inventory.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/inventory.example.com/privkey.pem;

    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Traefik — Docker labels

Add these labels to the frontend service and connect it to the network shared with Traefik:

# docker-compose.override.yml
services:
  frontend:
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.inventory.rule=Host(`inventory.example.com`)"
      - "traefik.http.routers.inventory.entrypoints=websecure"
      - "traefik.http.routers.inventory.tls.certresolver=letsencrypt"
      - "traefik.http.services.inventory.loadbalancer.server.port=8080"
    networks:
      - internal
      - traefik_public  # network shared with your Traefik instance

networks:
  traefik_public:
    external: true

Traefik — Dynamic configuration (file provider)

If Traefik is not running in Docker (or you prefer the file provider), drop a file in your dynamic config directory:

# /etc/traefik/dynamic/inventory.yml
http:
  routers:
    inventory:
      rule: "Host(`inventory.example.com`)"
      entryPoints:
        - websecure
      tls:
        certResolver: letsencrypt
      service: inventory-svc

  services:
    inventory-svc:
      loadBalancer:
        servers:
          - url: "http://127.0.0.1:8080"

Traefik picks up the file automatically — no restart required.

For local-only use, bind to loopback to prevent accidental LAN exposure:

# docker-compose.override.yml
services:
  frontend:
    ports:
      - "127.0.0.1:8080:8080"

Container hardening

Measure	Backend	Frontend
Non-root user	DOCKER_UID:DOCKER_GID (host user)	nginx (UID 101)
cap_drop: ALL	✓	✓
cap_add: NET_RAW	✓ (ping)	—
no-new-privileges	— ¹	✓
Healthcheck	✓	✓

¹ Omitted on the backend: ping uses file capabilities (cap_net_raw=ep); no-new-privileges suppresses the file effective bit and would prevent the subprocess from acquiring CAP_NET_RAW in its effective set even though the parent holds it in its permitted set.

---

💾 Data persistence

All data is stored in ./db_data/:

File	Description
topology.db	SQLite database
secret_key.txt	Auto-generated JWT secret (0600 permissions)

Backup: cp -r db_data/ db_data.bak/

Restore: stop the stack, replace db_data/, restart.

---

🏷️ Brand logo detection

Logo detection runs automatically against the device name and description fields (case-insensitive keyword matching). No manual configuration needed — just include a recognisable keyword in the name or description.

Logos are displayed in two places:

• Topology view — small inline SVGs next to the device name on each chip
• Device list — coloured badge(s) in the device card

Multiple logos can appear simultaneously if several keywords match.

Category	Brand	Trigger keywords
Virtualisation	Proxmox	proxmox, pve
Virtualisation	Docker	docker
NAS	Synology	synology, dsm
NAS	TrueNAS	truenas, freenas
UPS	Schneider Electric / APC	apc, schneider electric, symmetra, smart-ups, easy ups, galaxy ups
UPS	Eaton	eaton, powerware, eaton ups
UPS	Riello	riello, riello ups
UPS	Vertiv	vertiv, liebert, avocent, geist
French ISP	Orange	orange, sosh, livebox
French ISP	OVH	ovh, ovhcloud, kimsufi, soyoustart
French ISP	Free	freebox, free mobile, free telecom, iliad
French ISP	Bouygues Telecom	bouygues, bbox
French ISP	SFR	sfr, red by sfr, sfr box
Network	Ubiquiti / UniFi	ubiquiti, unifi, usg, udm
Network	MikroTik	mikrotik, routeros
Network	Cisco	cisco
Network	TP-Link	tp-link, tplink, tp link
Network	ASUS	asus
Network	Netgear	netgear
Network	pfSense	pfsense
Network	OPNsense	opnsense
Network	OpenWrt	openwrt
Network security	Fortinet / FortiGate	fortinet, fortigate, fortios, fortimanager, fortiauthenticator
Web / proxy	Apache	apache, apache2, httpd
Web / proxy	Nginx	nginx
Web / proxy	Traefik	traefik
Web / proxy	Apache Guacamole	guacamole
Bastion	Bastion / jump host	bastion, jumphost, jump host, jump server, teleport, bastillion
Auth / SSO	Authelia	authelia
Auth / SSO	Keycloak	keycloak
Auth / SSO	Authentik	authentik
Auth / SSO	Okta	okta
Auth / SSO	Auth0	auth0
Password vault	Vaultwarden	vaultwarden
Password vault	Bitwarden	bitwarden
Password vault	1Password	1password, onepassword
Password vault	KeePassXC	keepass, keepassxc
Password vault	HashiCorp Vault	hashicorp vault, hashicorp
Archiving	Archive server	archive, archiver, archivage, archivar, archivebox
Mail	Mail server	mail, smtp, imap, postfix, dovecot, mailcow, mailu, roundcube
Database	MariaDB	mariadb, maria db
Orchestration	Kubernetes	kubernetes, k8s, kubectl, k3s
Monitoring	Zabbix	zabbix
Monitoring	Centreon	centreon
Monitoring	Nagios	nagios, nagiosxi, nagios xi
Monitoring	PRTG	prtg, paessler
Monitoring	Prometheus	prometheus
Monitoring	Grafana	grafana
Monitoring	Datadog	datadog
Monitoring	Netdata	netdata
Monitoring	Checkmk	checkmk, check_mk
Monitoring	Icinga	icinga, icinga2
Monitoring	InfluxDB	influxdb, influx db
Monitoring	VictoriaMetrics	victoriametrics, victoria metrics
Alerting	Opsgenie	opsgenie
Alerting	PagerDuty	pagerduty, pager duty
Logs / Traces	Elastic / ELK	elasticsearch, elastic stack, elk
Logs / Traces	Kibana	kibana
Logs / Traces	Logstash	logstash
Logs / Traces	Splunk	splunk
Logs / Traces	Graylog	graylog
Logs / Traces	Jaeger	jaeger
Logs / Traces	OpenTelemetry	opentelemetry, otel
Apple ecosystem	Apple	apple, iphone, ipad, ipados, macbook, imac, mac mini, mac pro, mac studio, macos, mac os, ios, icloud, airpods, airdrop
OS	Windows	windows, win10, win11, winserver, windows server
OS	Debian	debian
OS	Ubuntu	ubuntu
Automation	Ansible	ansible
Servers	Dell	dell, idrac, poweredge
Servers	HP	proliant, ilo, hewlett
SBC / DIY	Raspberry Pi	raspberry, raspberrypi, rpi, raspi
SBC / DIY	Arduino	arduino
Browser	Firefox	firefox
Desktop	KDE / Plasma	kde, plasma, kde desktop
Tools	Excalidraw	excalidraw
Self-hosted	Nextcloud	nextcloud
Self-hosted	Paperless-NGX	paperless, paperless-ng, paperless-ngx
Self-hosted	Uptime Kuma	uptime-kuma, uptimekuma, uptime kuma
Self-hosted	MkDocs	mkdocs, material for mkdocs
CMS / Blog	WordPress	wordpress
CMS / Blog	Ghost	ghost
CMS / Blog	Grav	grav
CMS / Blog	Jekyll	jekyll
CMS / Blog	Hugo	hugo
CMS / Blog	Hexo	hexo
CMS / Blog	Drupal	drupal
CMS / Blog	Joomla	joomla
CMS / Blog	TYPO3	typo3
CMS / Blog	OctoberCMS	octobercms, october cms
CMS / Blog	Textpattern	textpattern
Analytics	Matomo	matomo
Analytics	Plausible	plausible
Smart TV	Samsung	samsung, tizen, samsung tv
Smart TV	LG	lg, webos, lg tv
Smart TV	Sony	sony, bravia
Smart TV	Panasonic	panasonic
Smart TV	Sharp	sharp
Smart TV	Toshiba	toshiba
Smart TV	Vestel	vestel
TV Box	Chromecast / Google TV	chromecast, google tv
TV Box	Android TV	android tv, androidtv
TV Box	Apple TV	apple tv, appletv
TV Box	Amazon Fire TV	fire tv, firetv, amazon fire
TV Box	Roku	roku
TV Box	Kodi	kodi
Media / torrent	Radarr	radarr
Media / torrent	Sonarr	sonarr
Media / torrent	Transmission	transmission
Media / home automation	Jellyfin	jellyfin
Media / home automation	Home Assistant	homeassistant, home assistant, hassio, hass
Media / home automation	Philips Hue	philips hue, hue bridge, hue hub
Media / home automation	Xiaomi	xiaomi, mi home, yeelight

---

🧑‍💻 Development

Backend tests

cd backend
pip install -r requirements.txt -r requirements-test.txt
pytest tests/ -v

Local dev (without Docker)

# Backend
cd backend
pip install -r requirements.txt
uvicorn main:app --reload

# Frontend (separate terminal)
cd frontend
npm install
npm run dev   # Vite dev server on :5173, proxies /api/ to :8000

---

🔧 Troubleshooting

Scan returns hundreds of false positives (proxy-ARP / UniFi)

Symptom — Auto-discovery reports as many hosts as there are addresses in the subnet (e.g. 254 for a /24), while only a few machines are actually present.

Cause — Some network equipment (notably UniFi Security Gateway, Dream Machine, and similar devices) enables proxy-ARP and responds to ICMP pings for every IP in the subnet, spoofing the source IP of the reply. The built-in source-IP check in the scanner cannot filter these false positives.

Fix — Enable the "TCP check (anti proxy-ARP)" option in the scan configuration screen. This option uses TCP instead of ICMP to detect live hosts (ports 22, 80, 443, 8080, 8443):

• A real host replies with RST (port closed) or accepts the connection → marked alive.
• A ghost IP: the gateway silently drops the SYN without replying → timeout → discarded.

Note

: a device whose firewall silently drops (DROP, without RST) all probed ports will not be discovered automatically and must be added manually.

Some devices are missing from the scan (ICMP rate-limiting)

Symptom — A few hosts (APs, switches, IoT devices) respond to a direct ping but are not found during a full subnet scan.

Cause — When 100 concurrent ICMP workers flood a /24, some devices or managed switches rate-limit ICMP responses. The device drops the probe during the scan even though a single ping works fine.

Fix — Two options:

• Enable "Soft scan (slow ICMP)": reduces concurrency from 100 to 10 workers. The scan takes longer but ICMP probes are spread out, avoiding rate-limiting. Best for subnets without proxy-ARP.
• Enable "TCP check (anti proxy-ARP)": bypasses ICMP entirely. TCP probes are not subject to the same rate-limiting. Best when both proxy-ARP and rate-limiting are present.

---

🏗️ Architecture

See docs/architecture.md for the detailed request flow, Docker setup, and authentication model.

---

🤖 Built with AI assistance

This application was developed entirely with the help of AI coding assistants:

• Claude Code (Anthropic) — used throughout the project for architecture design, backend API (FastAPI, SQLAlchemy, authentication, ICMP discovery), frontend components (Vue 3, CSS topology layout, i18n, dark mode), Docker & Nginx configuration, and documentation.
• Codex (OpenAI) — also used during development for code generation and suggestions across the entire codebase.

---

📄 License

This project is licensed under the GNU General Public License v3.0.

You are free to use, modify and distribute this software under the terms of the GPL v3. Any derivative work must be distributed under the same license.
